BBA620 · Container bag
620 × 240 × 115 cm
PU 50 pieces per pallet
Size · 2 items
Container bag 620 × 240 × 115 cm: both versions compared
In the size 620 × 240 × 115 cm we carry 2 container bags: 2 with asbestos warning print. The page puts them side by side: features, load capacity, packing unit and fill quantities. Each item also has its own page with data sheet, dimension drawing and printing.
- 2Items
- 17.11 m³Nominal volume
- on requestLoad capacity per data sheet
- 35 to 50Pieces per pallet
BBA620PE · Container bag
620 × 240 × 115 cm
PU 35 pieces per pallet
Information per product data sheet. “On request” means: the data sheet is unclear at this point or gives no information, and we confirm the value before your order. PU = packing unit (pieces per pallet). We state prices in the quotation.
How the versions differ
The same external dimensions do not mean the same version. At 620 × 240 × 115 cm the 2 items differ in these features:
- Fabric: coated BBA620; uncoated BBA620PE.
- Fabric weight: 125 g/m² for BBA620PE; for BBA620 the data sheet gives no value.
- Inner liner: BBA620PE (PE liner, 50 µm); the other items have no liner.
- Packing unit: 50 pieces BBA620, 35 pieces BBA620PE.
Which version for which condition
The table assigns typical conditions to the versions. It is a guide based on the data sheet information; your risk assessment and the requirements of your waste disposal company take precedence. With the Big Bag Finder you reach a recommendation in three questions.
Volume and filling in 620 × 240 × 115 cm
The nominal volume is 17.1 m³ with 14.9 m² base area and 115 cm height. The data sheets give no load capacity for container bags. The filling is determined by container size, material and the permitted gross weight of the vehicle. For orientation: with mixed rubble (1.40 t/m³) the full nominal volume would by calculation be 24 t, with dry sand (1.50 t/m³) 26 t. Filling the bag to the brim is therefore generally not possible: the permitted load of the vehicle sets the limit.
Handling in 620 × 240 × 115 cm

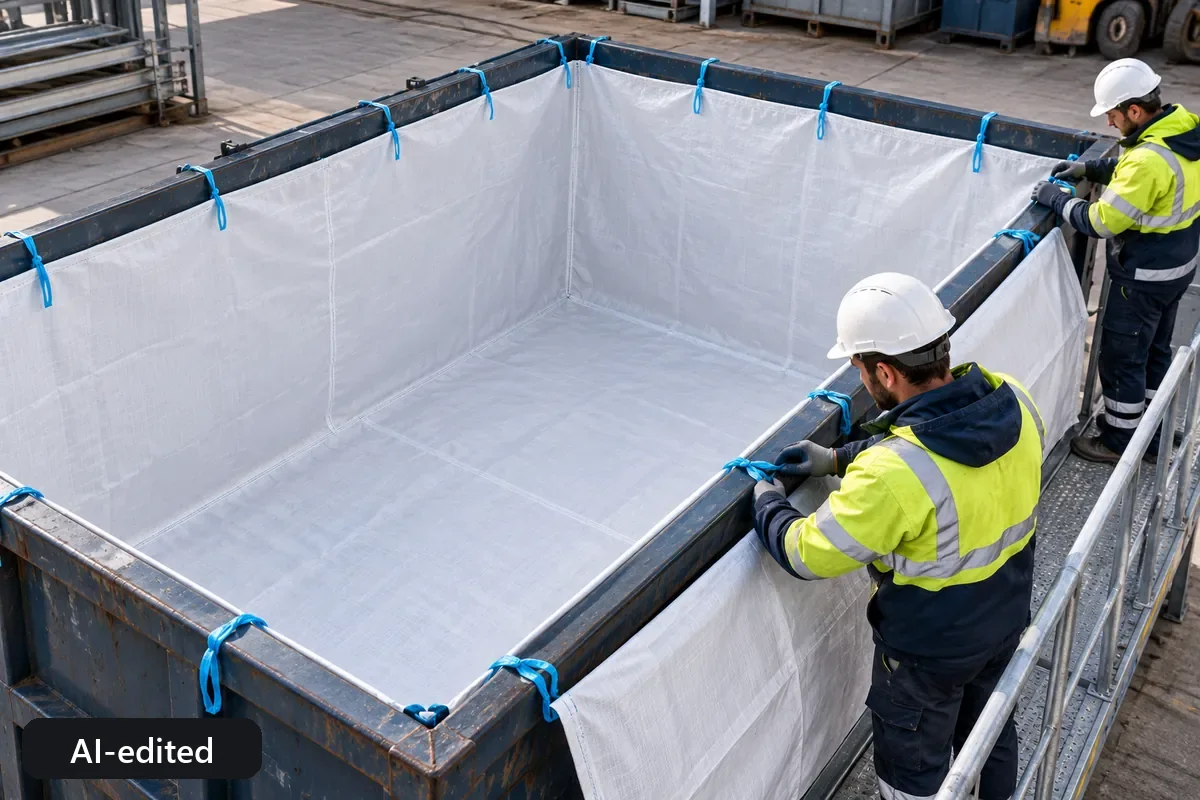

- The bag lies in the roll-off container, the retaining and closing straps hold it there, and the lid closes it. It is moved with the crane eye; clarify the permitted load and type of attachment with us in advance.
- Coated items (BBA620) protect against the ingress of moisture according to the data sheet and are suitable for rain and outdoor storage. UV light still weakens the fabric.
- Store uncoated items (BBA620PE) dry and covered; the fabric absorbs moisture.
- Items with asbestos warning print (BBA620, BBA620PE): leave the warning print visible and clarify type of packaging and maximum weight with the acceptance point in advance; see Asbestos big bags and sacks.
General rules are in the article Handling and storage of big bags.
Data sheet values side by side
The table compares the information from the data sheets and item data feature by feature. “On request” means: the value is unclear in the data sheet or missing, and we confirm it before your order. A dash means: this feature does not exist on this item.
| Feature | BBA620 | BBA620PE |
|---|---|---|
| External dimensions | 620 × 240 × 115 cm | 620 × 240 × 115 cm |
| Load capacity (SWL) | on request | on request |
| Fabric | coated | uncoated, 125 g/m² |
| Asbestos warning print | Asbestos warning print | |
| Standard reference per data sheet | TRGS 519 | TRGS 519 |
| Top or closure | Lid, retaining and closing straps, crane eye | Lid, retaining and closing straps, crane eye |
| Bottom | Lid, closed bottom | Lid, closed bottom |
| Lifting loops | Retaining and closing straps, crane eye | Retaining and closing straps, crane eye |
| Inner liner | – | PE liner, 50 µm |
| Special feature | Asbestos warning print in 7 languages | Asbestos warning print in 7 languages |
| Areas of use per data sheet | Disposal, remediation | Disposal, remediation |
| Packing unit | 50 pieces per pallet | 35 pieces per pallet |
Neighbouring sizes
Container bag 620 × 240 × 115 cm ranks 5 of 5 sizes by nominal volume in the Container Bags group (rank 1 is the largest). The next sizes:
| Size | Nominal volume | Items | Load capacity |
|---|---|---|---|
| Container bag 650 × 240 × 115 cm | 17,94 m³ | 2 | on request |
| Container bag 650 × 240 × 240 cm | 37,44 m³ | 1 | on request |
Delivery and printing
The items are delivered by the pallet. For printing with a company logo or text, 5 pallets per order and motif apply. The table shows the packing unit and the minimum quantity per item. In the printing advisor you can see the motif on the bag, next to the warning print, which remains visible. We state prices in the quotation.
| Item no. | Pieces per pallet | Bundling per data sheet | Pieces at 5 pallets |
|---|---|---|---|
| BBA620 | 50 | on request | 250 |
| BBA620PE | 35 | on request | 175 |
How to order
Save the items you want from 620 × 240 × 115 cm with the heart, enter the quantities on the enquiry form and send it. We reply with an item suggestion, data sheets and a quotation; we state prices in the quotation. For all items of this size the data sheet information is complete. No declaration of conformity is available for any item of this size; for the others we send it as soon as the EU type-examination certificate is available (Documents).
Frequently asked questions about container bag 620 × 240 × 115 cm
Which version in 620 × 240 × 115 cm should I choose?
That depends on material, storage and marking. The table “Which version for which condition” assigns typical cases. In the Big Bag Finder you answer three questions and receive a recommendation with reasons.
Why are there several items in 620 × 240 × 115 cm?
Because the versions differ in features such as coating, inner liner and packing unit, even though the external dimensions are the same. Each item has its own data sheet and its own product page.
How many pieces fit on a pallet?
BBA620: 50 pieces, BBA620PE: 35 pieces. Printing is possible from 5 pallets per order and motif.
What does my acceptance point require for asbestos waste?
That differs locally: the Stade district, for example, states a maximum of 750 kg per big bag, and the Schweinfurt district excludes container big bags. Ask your waste disposal company before ordering; see Asbestos big bags and sacks.
Information per product data sheet and item data of DS SafetyWear Arbeitsschutzprodukte GmbH. “On request”: value unclear or not given in the data sheet; we confirm it before the order.
