Load-bearing capacity of BBA260
BBA260 holds 0.98 m³ by calculation and carries 1,500 kg at safety factor 5:1. This gives a mean density of 1,538 kg/m³ at full utilisation of volume and load capacity: material that is heavier does not fill the bag to the brim, and lighter material does not reach the load capacity. For sheets and profiles the weight of the parts counts, not a bulk density. Add up the weight of the parts and compare it with 1,500 kg before you fill BBA260.
Quantity planning with BBA260
How many BBA260 do you need for a given quantity of material? The table uses the nominal volume of 0.98 m³ and 280 pieces per pallet. With sand (1.50 t/m³), the load capacity of 1,500 kg limits the fill quantity per bag to 0.98 m³.
| Items | Material quantity | Bags at full volume | Pallets | Bags for sand at the load capacity limit | Pallets |
|---|---|---|---|---|---|
| BBA260 | 10 m³ | 11 | 1 | 11 | 1 |
| BBA260 | 25 m³ | 26 | 1 | 26 | 1 |
| BBA260 | 50 m³ | 52 | 1 | 52 | 1 |
| BBA260 | 100 m³ | 103 | 1 | 103 | 1 |
Handling of BBA260

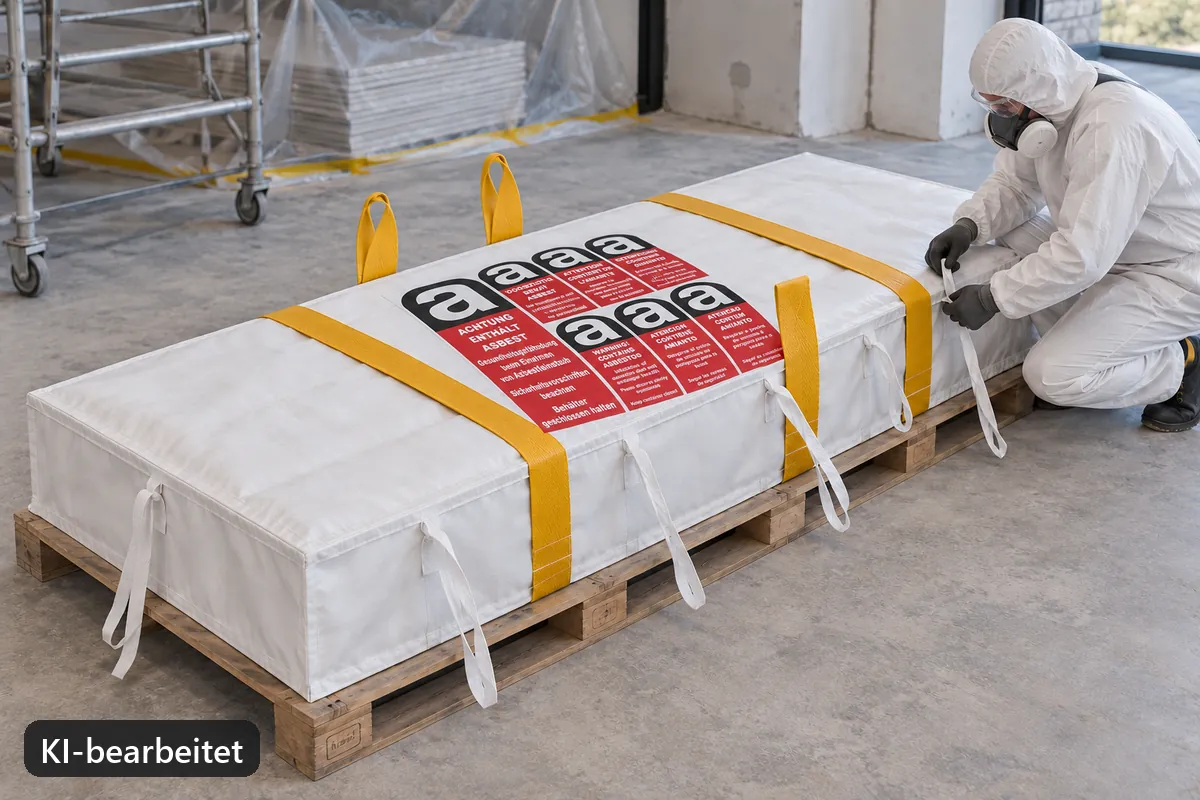

- On BBA260 the four lifting loops lie on two circumferential straps. Attach all four at the same time; the straps spread the load over the length of 260 cm.
- BBA260 is coated. According to the data sheet the fabric protects against the ingress of moisture and is suitable for rain and outdoor storage. UV light still weakens it.
- When filled, BBA260 weighs up to 1,500 kg. Lifting equipment, lifting accessories and ground must be rated for this.
- BBA260 carries the asbestos warning print in seven languages. Leave it visible and clarify type of packaging and maximum weight with your acceptance point in advance.
- The standard reference TRGS 519 in the data sheet of BBA260 is not an approval; the acceptance is clarified by your waste disposal company, see Asbestos and mineral wool.
- A pallet holds 280 pieces of BBA260 (7 bundles of 40 pieces). Store unused bags in their original packaging.
